PowerLinc

PowerLinc is a UL CSA certified, electrical console wiring system that delivers high power where it is needed. Each system can provide three 20 Amp circuits while maximizing flexibility and reducing electrical contractor costs.

Whether in the console or the sub-floor, PowerLinc’s combination of extruded metal casings and armored cables provides the strength needed to withstand 24/7 critical environments.

PowerLinc console wiring can be linked together and mounted to the frame, in either a vertical or horizontal position providing maximum placement flexibility within the console. The junction box can be mounted on either side of the console, or beneath the console in the subfloor using a whip, thus further increasing your cabinet space.

How PowerLinc Electrical Console Wiring Can Help Your Organization

• Flexibility for future changes to your control room configuration
• Enhanced power capabilities with three 20 Am Circuits rated for 7,200 W
• Seamless integration with console design
• Reduce your electrical contractor costs
• Extruded metal casings and armored cabling provide the durability required to withstand 24/7 Mission-Critical Operations.

PowerLinc at a glance:

• Time and Cost Savings: Time and cost savings with the “plug and play” method, the time needed for electrical contractors are significantly reduced.
• LSZH Materials: PowerLinc materials are available in low-smoke, zero-halogen (LSZH), for low smoke toxicity and optical density, providing an added layer of safety in the event of a fire.
• Modular Components: The patented “H” connectors enable PowerLinc to adapt to console re-configuration as control room needs change.
• Greater Flexibility: Multiple PowerLinc components can be connected and run below raised flooring, allowing for maximum layout flexibility.

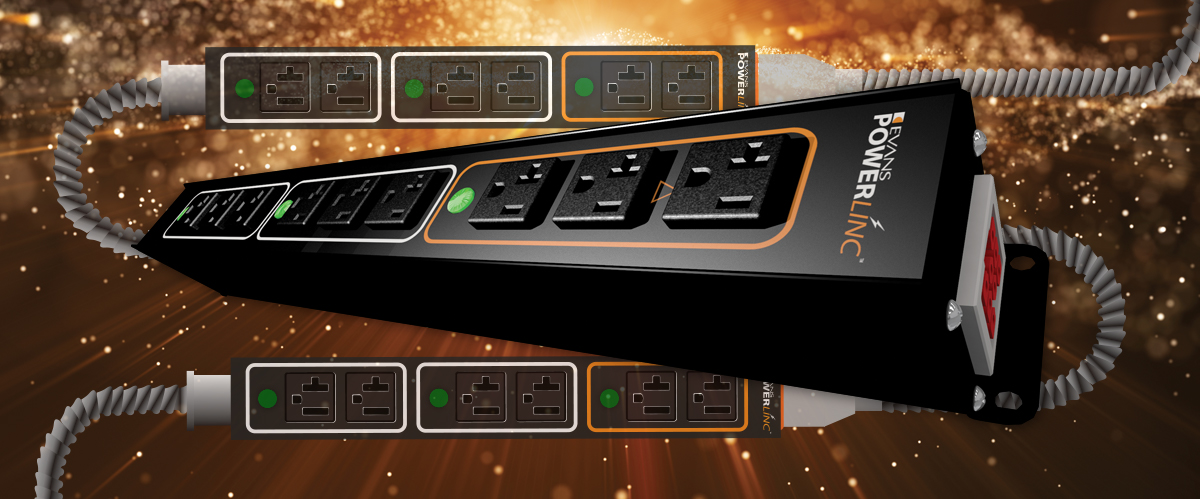

• Sizing Options: PowerLinc distribution is available in two and three circuit versions, sized for 4 outlets (2 circuit) 6 outlet (standard) or 9 outlets (optional). Extension cables are available in custom lengths to satisfy on-site requirements.

How the system works:

• Three 20A circuits deliver power through NEMA 5-20R receptacles.
• The color-coded receptacles can be used to differentiate multiple power sources such as UPS and Grid.
• All three circuits (each with its own separate neutral) are combined into a single 8-wire armored cable.
• Easy-to-use “H” connectors are the link between whips, junction boxes, splitters, extensions, and other PowerLinc components.
• Three available outlet choices: 4, 6 and 9.

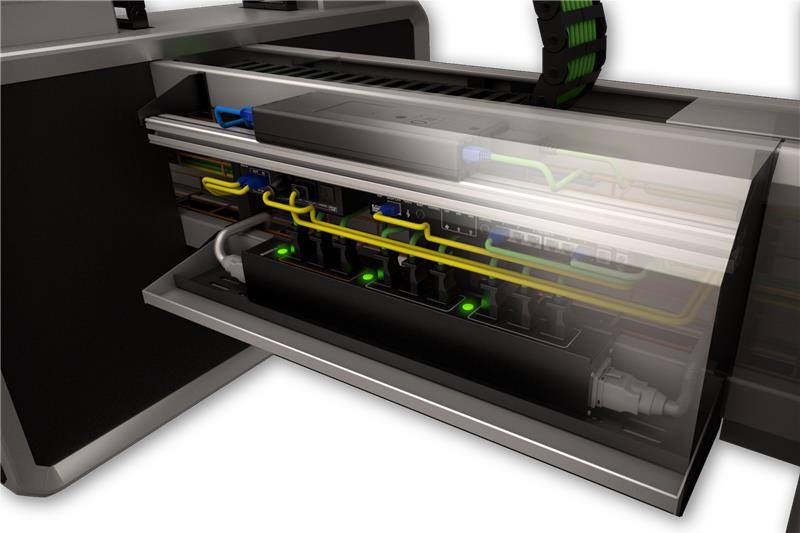

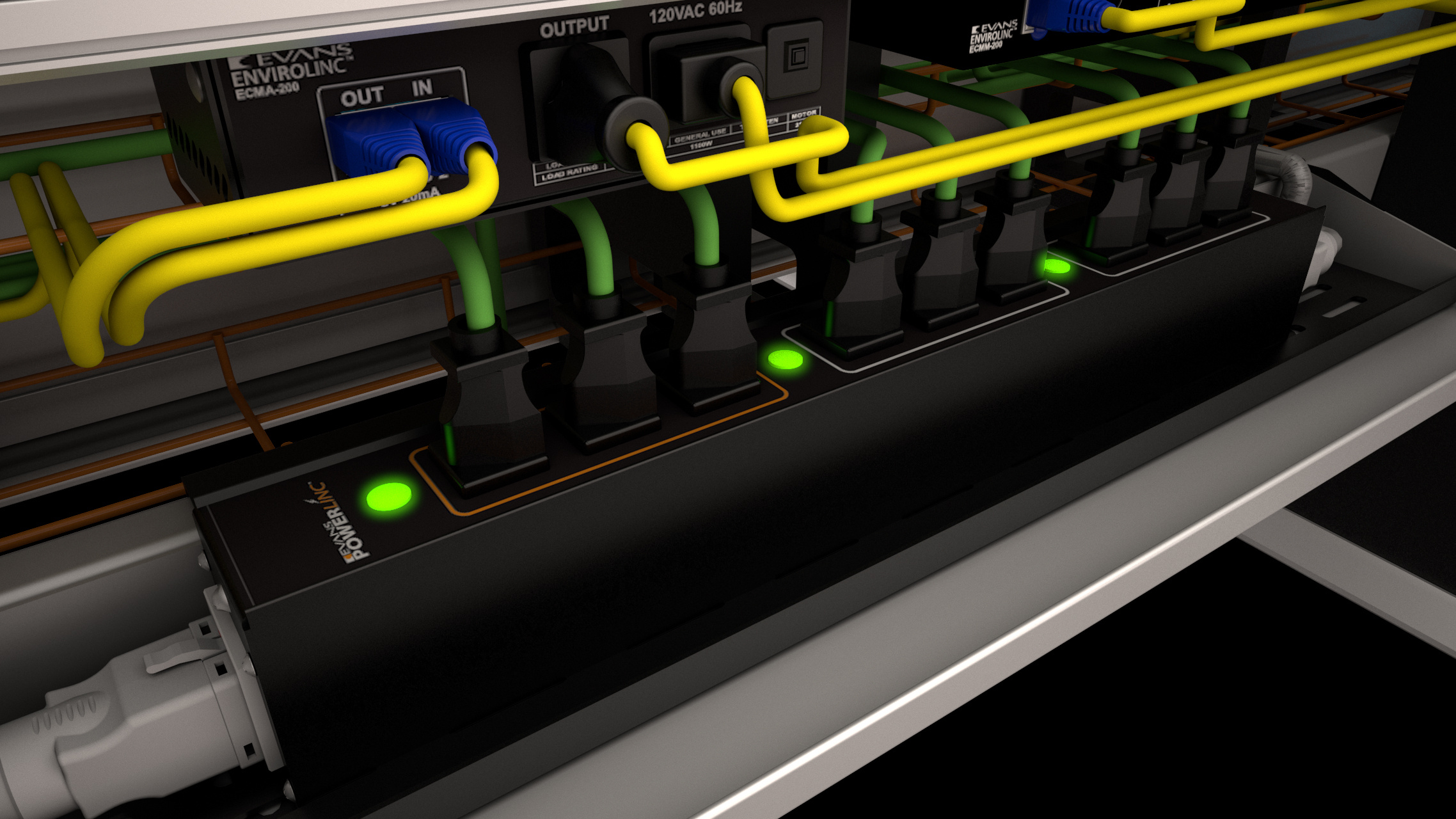

Inside a console

PowerLinc can be linked together and mounted to the frame, in either a vertical or horizontal position, providing maximum placement flexibility within the console, the junction box can be mounted on either side of the console and a whip/ starter cable can be used in replacement to further increase cabinet space.
